Hanging a curtain rod looks like a five-minute job until you’re staring at a crooked bracket, a stripped screw, or a rod that won’t sit level no matter how many times you re-measure. The truth is that a professional-looking curtain installation comes down to four things: the right hardware for your wall, accurate measurements, correctly placed brackets, and a support plan that matches your curtain’s weight. This guide by Shoukat Interior walks you through the entire process, including different wall types, wide windows, and a no-drill route if you’re renting.
Mark your bracket height (usually 4–6 inches above the frame, or higher for a taller look), mark the width so the rod extends 6–15 inches beyond each side of the window, confirm both marks are level, then secure the brackets to a stud or to a wall anchor rated for your wall type and curtain weight before hanging the rod.

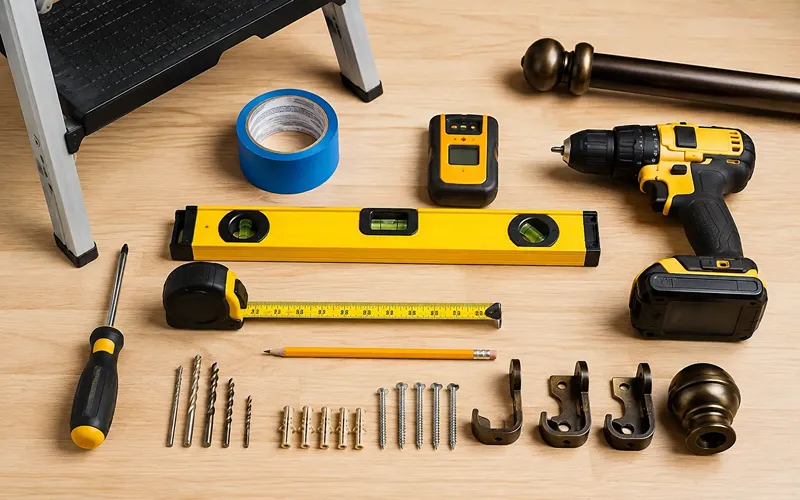

What You’ll Need?
Before you touch a drill, lay everything out so you’re not hunting for a pencil halfway through the job. A solid curtain rod installation kit includes:
- Tape measure: For marking bracket height and width accurately
- Pencil: To mark drill points lightly (a pen leaves permanent marks if you’re off)
- Level: A 24-inch level works best for checking that both brackets sit even
- Power drill and drill bits: Sized to match your anchors and wall material
- Stud finder: Helps you locate wood framing for the strongest possible hold
- Wall anchors: Rated for your specific wall type and load
- Screwdriver: For final tightening once the mounting plate is in place
- Painter’s tape: Wrap it around your drill bit to mark depth so you don’t drill too deep
- Step ladder: A stable one, not a chair or a stack of boxes
Before you start, check what actually came in the box. Some blackout curtain rod kits include brackets, screws, wall anchors, and finials; others only include the rod itself. Confirming this up front saves a second trip to the hardware store.
Choose the Right Curtain Rod and Hardware
Curtain rod types aren’t interchangeable, and picking the wrong one causes most of the frustration people run into later.
- Single rods are the simplest option, suited to one layer of window curtains in most rooms.
- Double rods let you layer sheers underneath a heavier curtain panel.
- Tension rods wedge inside a window recess or between two walls with no drilling, best for lightweight curtains or closets.
- Traverse rods use a track-and-carrier system, usually paired with pinch-pleat or similar tailored curtains, and let you draw the curtains with a cord instead of by hand. They’re a specific choice for that curtain style, not a general default.
Rod diameter and material matter too. A thin, hollow rod may look fine but sag under heavy, lined, or blackout curtains, check the manufacturer’s stated weight capacity and match it to your fabric before buying.

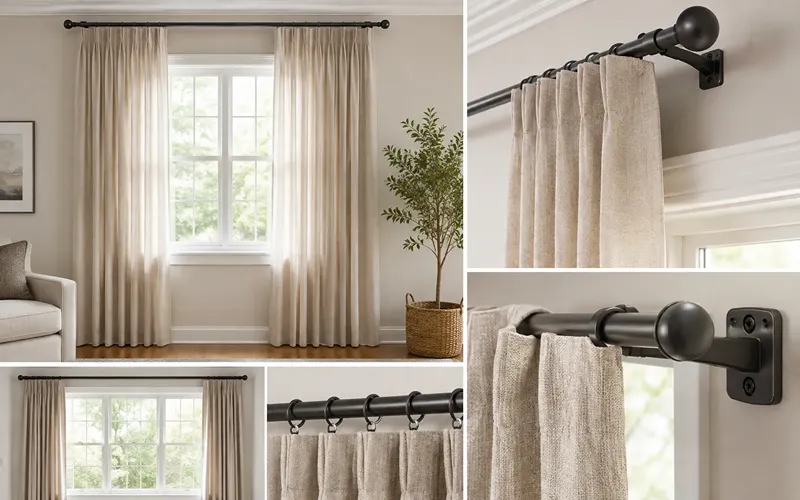

Measure for Curtain Rod Placement
How High to Mount the Rod?
A common baseline is four to six inches above the window frame. For a more dramatic effect, many designers mount rods closer to the ceiling instead, since it visually stretches the wall and makes the room feel taller, a technique sometimes called the “high and wide” method. Whichever height you choose, keep it consistent across all windows in the same room for a cohesive look.
How Far the Rod Should Extend?
Extend your brackets six to fifteen inches beyond the window frame on each side. This lets curtains stack fully open during the day so they don’t block light or cover the glass. To work out the total rod length you need:
Rod length ≈ window width + (extension on each side × 2)
Example: a 48-inch-wide window with 8 inches of extension on each side needs a rod that spans roughly 64 inches, before accounting for the specific bracket or finial design (some finials add a few extra inches on each end, check the product spec).
Where to Place the Brackets?
Side brackets should sit close enough to the rod’s end that the finial or end cap still has room to seat properly, but far enough in that the bracket isn’t visible under an open curtain. Whether you need a center-support bracket depends on the rod’s length, diameter, material, and the weight of the curtains, not on a single fixed measurement. As a general guide, longer or heavier rods, roughly 6–7 feet and up, usually benefit from center support. Always defer to the rod manufacturer’s stated maximum span if one is listed.
Curtain Weight and Fullness
Curtain panels are usually sized wider than the window itself so the fabric can gather naturally rather than hanging flat, check your curtain’s listed width against the rod length before buying. Also factor in bracket projection, how far the bracket holds the rod from the wall. Thicker curtains, blackout linings, and curtain rings all need extra clearance so the fabric doesn’t rub against the wall, trim, or window handles.

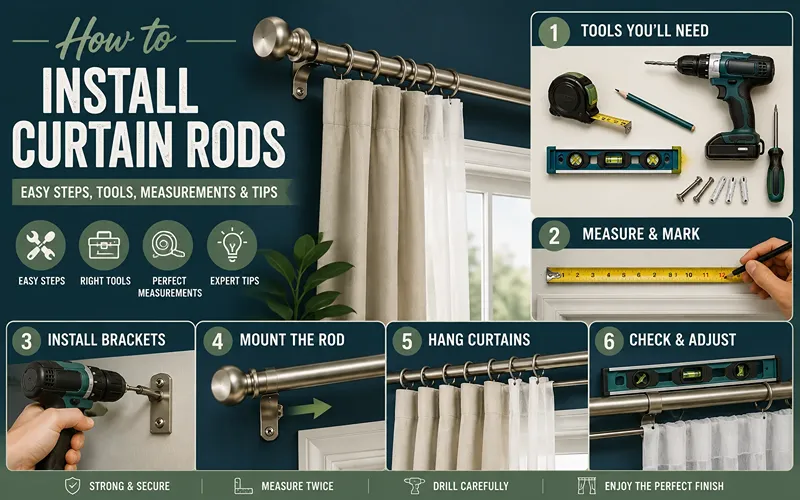

How to Install Curtain Rods Step by Step?

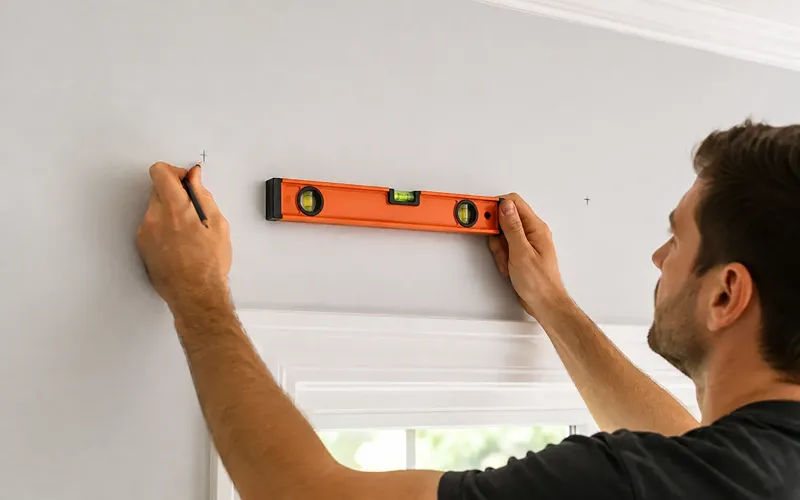

1. Mark the Bracket Positions
Using your measurements, mark the top corner of each bracket location, then check both marks with a level so the rod will hang straight.
2. Check for Studs and Hidden Utilities
Run a stud finder across your marked area. A screw driven into a stud gives the strongest hold, provided it’s long enough to bite securely into the framing rather than just grazing the surface. If you’re working near an exterior wall, hidden wiring or plumbing can sometimes run through the wall cavity, avoiding drilling deeper than necessary.
3. Choose the Correct Anchor
If a stud isn’t available at your marked spot, you’ll need a wall anchor. Anchors aren’t one-size-fits-all. Check the anchor’s stated load rating against the combined weight of the rod, curtains, and hardware, then match the anchor type to your wall material (see the wall-type guide below).
4. Drill Pilot Holes
Using a drill bit sized to your anchor or screw, drill pilot holes at each mark. Pilot holes prevent the wall material from cracking and keep your screws going in straight.

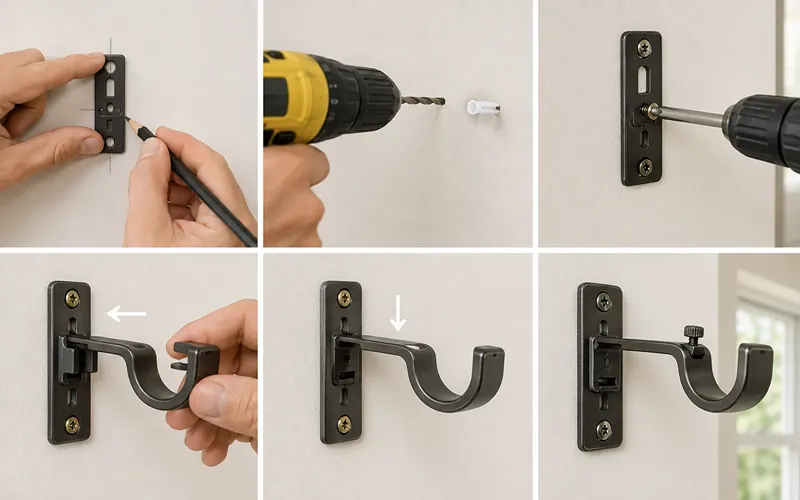

5. Install the Brackets
Insert anchors if needed, then screw the mounting plate into place, most kits have a narrow side that should sit flush against the wall. Slide or snap the bracket onto the mounting plate once it’s secure.
6. Hang the Rod and Curtains
Feed your curtain panels onto the rod first, then rest one end in the bracket while you secure the opposite end. Adjust the fabric so it hangs evenly, and attach finials if your rod has them.

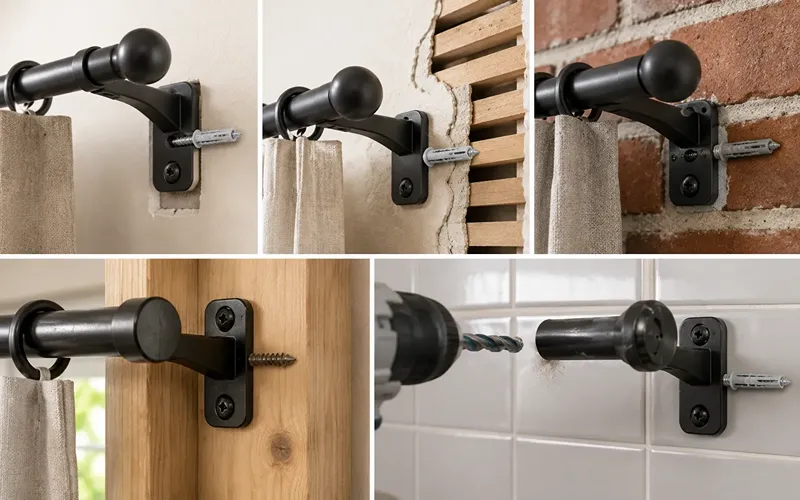

How to Install Curtain Rods on Different Wall Types?
- Drywall: The most common wall type in modern homes. Use a stud when possible; otherwise choose drywall-rated anchors (toggle or expansion anchors) sized for your load.
- Plaster and lath: Older homes often have plaster over wood lath, which can crack under pressure. Drill slowly at low speed, and use anchors designed for plaster rather than standard drywall anchors.
- Brick or concrete: Use a masonry drill bit and masonry-rated anchors sized to the screw. These walls hold weight well but require more effort to drill.
- Wood studs: The strongest option when available, a properly sized screw driven directly into the stud usually doesn’t need an anchor at all.
- Tile: If you must drill into tile (for example, above a bathroom window), start the hole with a small masonry or tile bit at low speed to avoid cracking the surface, then switch to the bit size needed for your anchor.

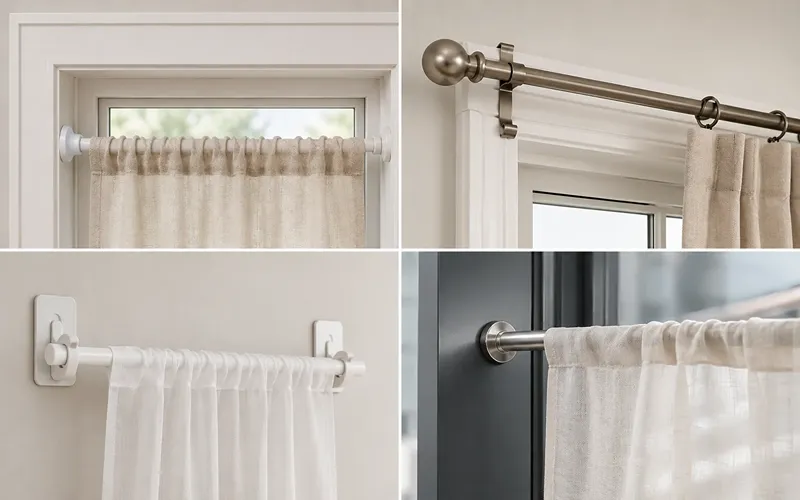

How to Install Curtain Rods Without Drilling?
Renters and apartment dwellers often can’t put holes in the wall, but that doesn’t mean bare windows are the only option:
- Tension rods – fit snugly inside a window recess or between two walls with no hardware, and remove just as easily
- No-drill brackets – clip onto window trim, using the wood molding itself rather than the drywall
- Adhesive hooks or brackets – heavy-duty adhesive strips can hold lightweight to medium curtains on smooth, painted surfaces
- Magnetic rods – work if your window frame or door has exposed metal, though they won’t grip wood or drywall
Weight capacity varies a lot between these methods, so match the option to your curtain fabric, sheers and café curtains do fine with adhesive hooks, while heavier blackout panels are safer on a tension rod with center support.
Special Window and Mounting Scenarios
Wide windows: Longer rods need additional support so they don’t bow in the middle, but the center bracket should be positioned so it doesn’t block the curtains from opening fully. If you’re using a traverse rod with carriers, follow the manufacturer’s spacing guidance rather than estimating.
Off-center windows: If the window itself isn’t centered on the wall, decide whether to center the rod on the window or on the wall as a whole, centering on the window usually looks more intentional, but centering on the wall can work better in a room with strong symmetry.
Bay and bow windows: These curved or angled window setups usually need a specialized flexible or multi-section rod rather than a single straight rod, since a standard rod can’t follow the angle.
Corner windows: Where two windows meet at a corner, look for corner brackets designed for that junction, or run two separate rods that stop just short of the corner.
Ceiling-mounted rods: In rooms with little wall space above the window, or for a floor-to-ceiling curtain look, a ceiling-mounted track or rod is often a cleaner option than pushing a wall bracket as high as it will go.

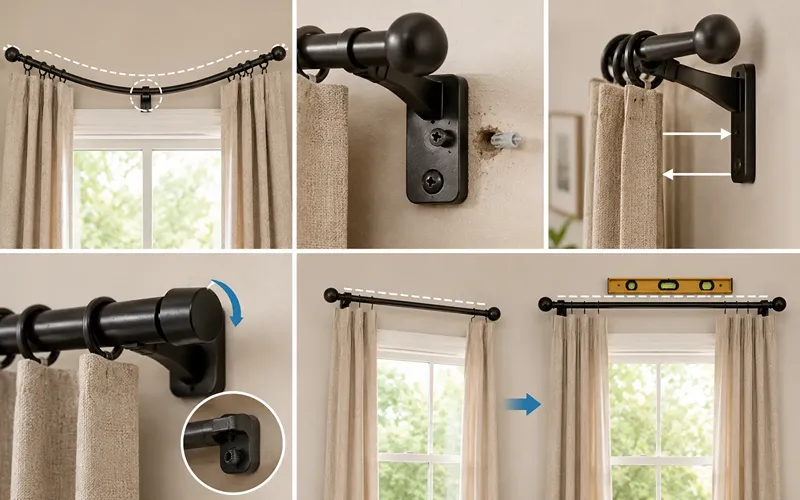

Troubleshooting Common Problems
- Rod sagging in the middle: Add a center-support bracket, or switch to a rod with a larger diameter rated for the curtain’s weight.
- Bracket working loose over time: The anchor may be undersized for the load, replace it with a higher-rated anchor, or relocate the bracket to hit a stud.
- Curtains catching on the bracket: Increase bracket projection so the rod sits further from the wall, giving the fabric more clearance.
- Rod slipping out of the bracket: Check that the bracket is fully closed or the set screw (if included) is tightened.
- Uneven bracket heights: Remove and re-mark using a level rather than measuring from the floor, since floors and ceilings are rarely perfectly even.

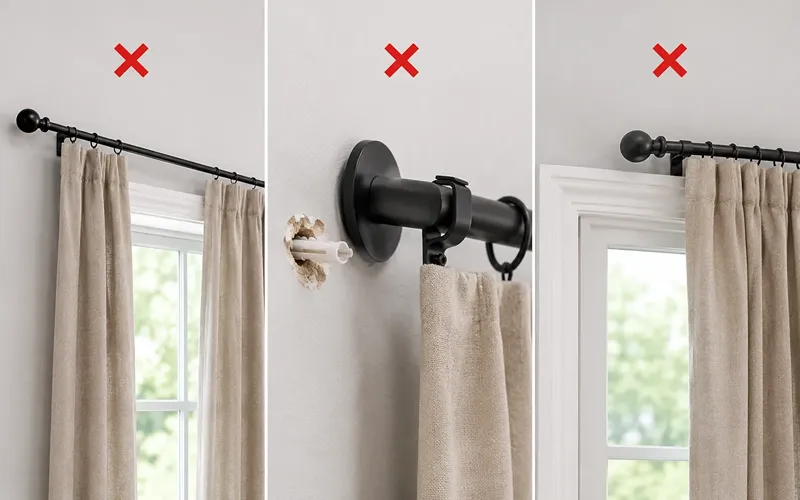

Common Mistakes to Avoid
Skipping the level and eyeballing bracket height is the most common mistake, a rod that’s even slightly off becomes very noticeable once curtains are hanging. Using the wrong anchor for the wall type is another frequent issue, since drywall anchors won’t hold in plaster or masonry and the bracket can eventually pull loose. Mounting brackets too close to the window frame is a third one, since it limits how far curtains can open and blocks light even when you want the window fully exposed.
Final Tips
Match your hardware to your wall and your curtain’s actual weight rather than guessing, and use a level at every stage rather than trusting the eye. Once the anchors are right for the wall and the measurements are marked correctly, the mounting itself only takes a few minutes per bracket, whether you’re drilling into a stud or clipping on a no-drill bracket as a renter.
Frequently Asked Questions
What size curtain rod do I need for my window?
Add your desired extension on each side (typically 6–15 inches) to the window’s width to get the minimum rod length, then round up to the nearest available size.
How far should a curtain rod extend past the window?
Six to fifteen inches on each side is typical, which allows curtains to fully clear the glass when open.
Should curtain rods be mounted close to the ceiling?
It’s optional, but mounting higher than the standard 4–6 inch minimum makes ceilings appear taller and is a common designer technique.
Where should curtain rod brackets be placed? Close enough to the rod ends to seat the finial properly, with a center bracket added for longer or heavier rods based on the manufacturer’s span rating.
Can I install a curtain rod into the drywall?
Yes, use a stud where possible, or a drywall-rated anchor sized for the combined weight of the rod and curtains.
What type of anchor should I use for a curtain rod?
Match the anchor to your wall material (drywall, plaster, masonry) and check its load rating against your total hardware weight.
How do I install a curtain rod into plaster?
Drill slowly at low speed to avoid cracking, and use anchors designed for plaster and lath rather than standard drywall anchors.
How do I install a curtain rod into brick or concrete?
Use a masonry drill bit and masonry-rated anchors sized to your screws.
Do heavy blackout curtains need a center bracket? Often yes, especially on longer rods, check the rod’s maximum recommended span for the curtain weight you’re using.
How do I stop a curtain rod from sagging? Sagging usually means the rod is under-supported for its length or the curtain’s weight, a center bracket or a sturdier rod is the usual fix. See the troubleshooting section above for other causes.
Can I install a curtain rod without drilling? Yes, tension rods, adhesive brackets, magnetic rods, and no-drill trim clips are all viable depending on your wall type and curtain weight.
Can I install a curtain rod on a wide window? Yes, but plan for a center-support bracket positioned so it doesn’t interfere with the curtains opening.
